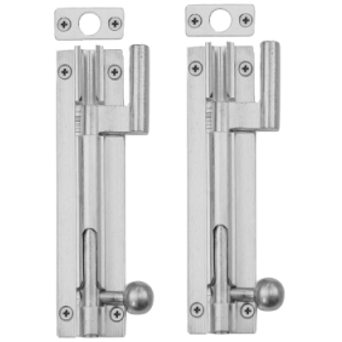

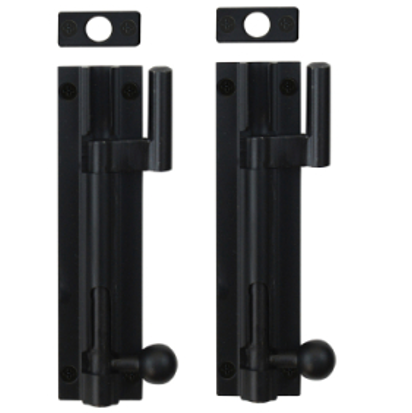

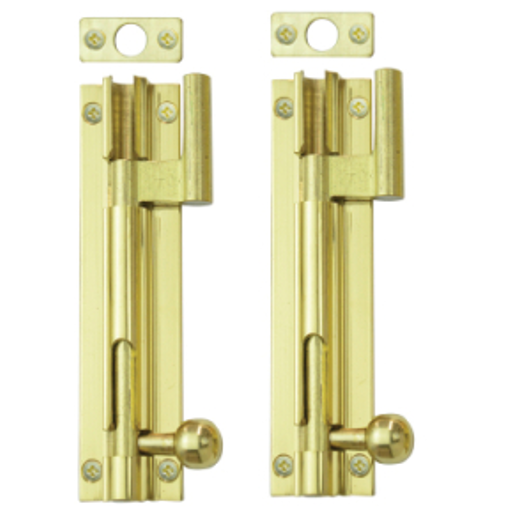

Windsor 5213 100mm Necked Barrel Bolt

Product Description

Windsor 5213 100mm Necked Barrel Bolt is a solid brass surface-mounted bolt designed to provide additional security and stability for doors, windows and joinery applications. With its necked throw design, it is suitable for situations where the bolt needs to secure into an offset keeper or frame position.

This barrel bolt is commonly used on French doors, double doors, inactive door leaves, windows, cupboards and other joinery where a simple and reliable secondary locking solution is required.

Key Features:

Solid Brass Construction:
Made from solid brass for strength, durability and long-term performance.

Necked Throw Design:
The necked throw allows the bolt to secure into an offset keeper or frame position, making it suitable for a wider range of installation situations.

Smooth Operation:
Designed with dual ball bearings for a firm and smooth sliding action.

Surface-Mounted Installation:
Easy to install on the surface of doors, windows or joinery without requiring a standard door lock drill-out.

Suitable Applications:

• French doors
• Double doors
• Inactive door leaves
• Windows
• Cupboards
• Cabinets
• General joinery applications

Technical Information:

Product Code: 5213

Size: 100mm x 25mm

Throw: 19mm

Throw Type: Necked throw

Material: Solid brass

Keeper: Front keepers included

Installation / Fixing Information:

This barrel bolt is surface-mounted and does not require a standard door lock drill-out. Installation position and fixing method should be confirmed on site based on the door, frame and required locking direction.

For French doors or double doors, this bolt is typically used to secure the inactive leaf into the frame, head, sill or floor area.

Important Note:

This product is designed as a secondary security bolt and is not intended to replace a main lockset where primary security is required. Please check finish availability before ordering, as available finishes may vary depending on supplier stock.

Warranty Information:

Windsor provides a 10-year mechanical warranty for this product.

The mechanical warranty generally covers defects in material or workmanship under normal residential use, provided the product is installed correctly and maintained appropriately.

Finish warranty is assessed at Windsor’s discretion. Finish performance may vary depending on environment, exposure, cleaning products, handling and maintenance. Coastal, high-humidity, commercial or harsh environments may affect the life of the finish.

To maintain the product, avoid abrasive cleaners, harsh chemicals or metal polish unless specifically recommended by the manufacturer. Wipe with a soft damp cloth and dry after cleaning.
