Schlage Stella Sliding Door Lock Standard & Slimline – Non-Key Locking, Key Locking, Dummy

Product Description

The Schlage Stella Sliding Door Lock is designed for external timber and aluminium sliding glass doors.

Choose between the comfortable Standard D-Handle or the compact Slimline Handle for a less obstructed view through the door. Both styles are universal and suitable for left- or right-opening doors.

Available Functions

• Standard Stella D-Handle – Larger curved handle for comfortable everyday operation
• Stella Slimline – Compact handle profile for a cleaner, less obstructed appearance

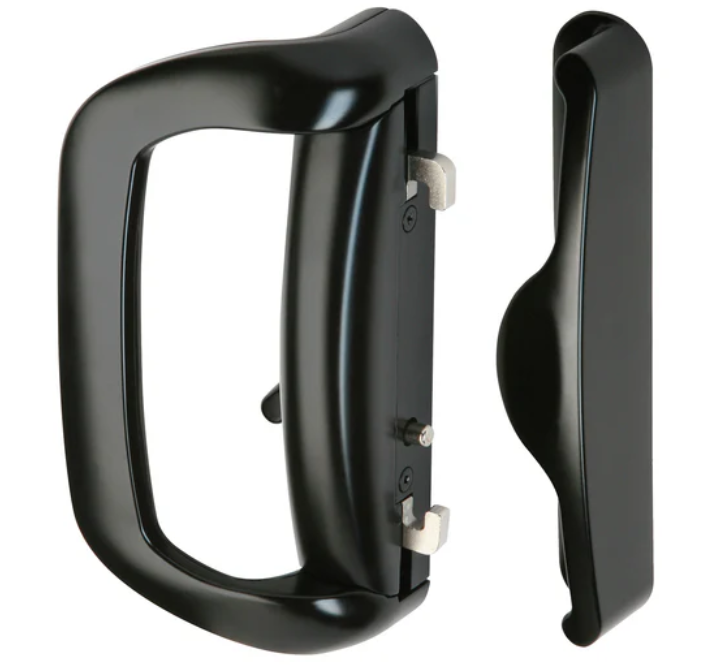

• Standard D-Handle: Non-Key Locking – Inside snib with blank outside pull

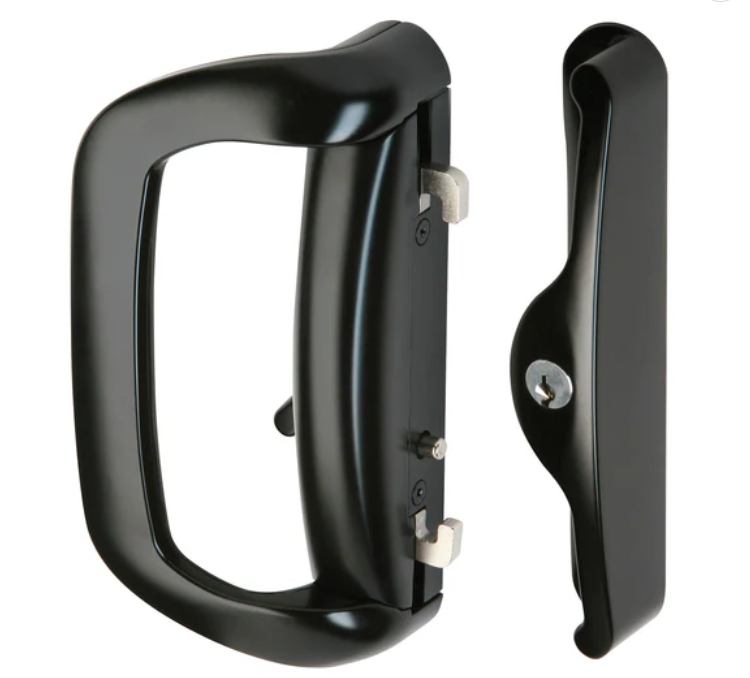

• Standard D-Handle: External Locking – Inside snib with outside key access

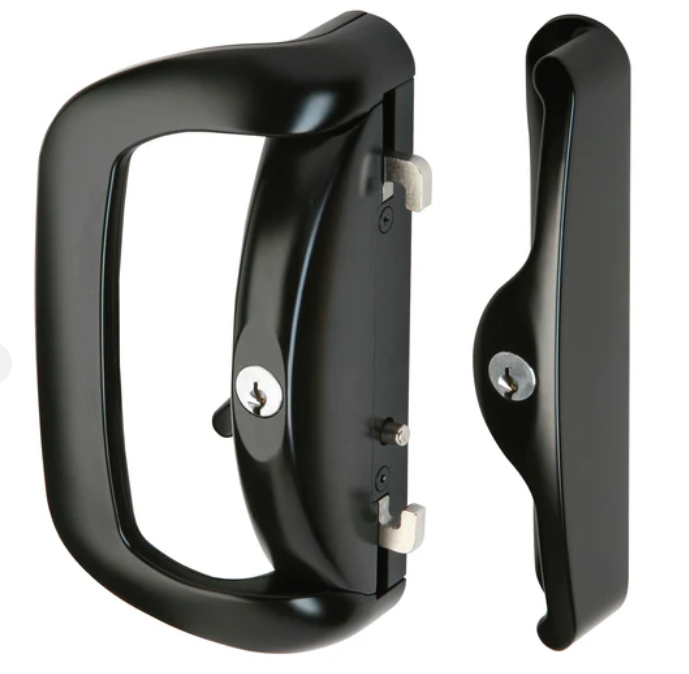

• Standard D-Handle: Deadlocking with Daylatch – Key and snib locking from inside, with outside key access

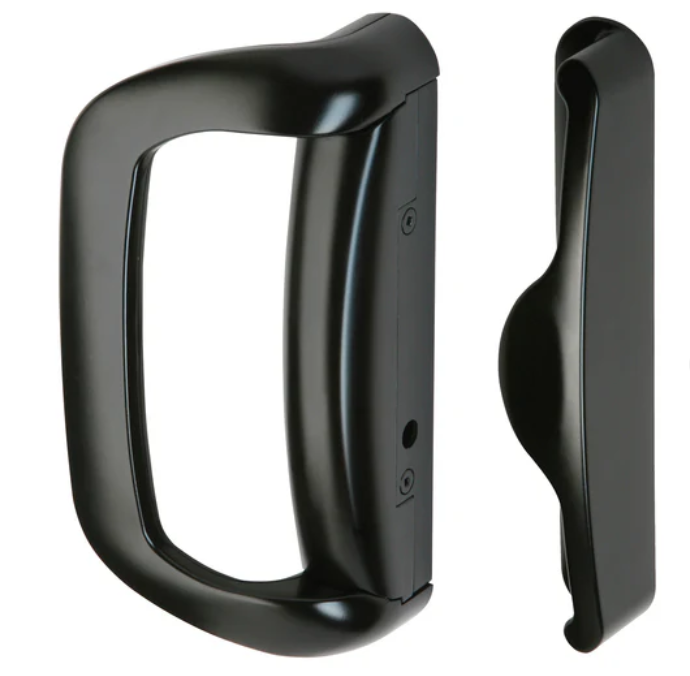

• Standard D-Handle: Dummy – Non-locking pull handle

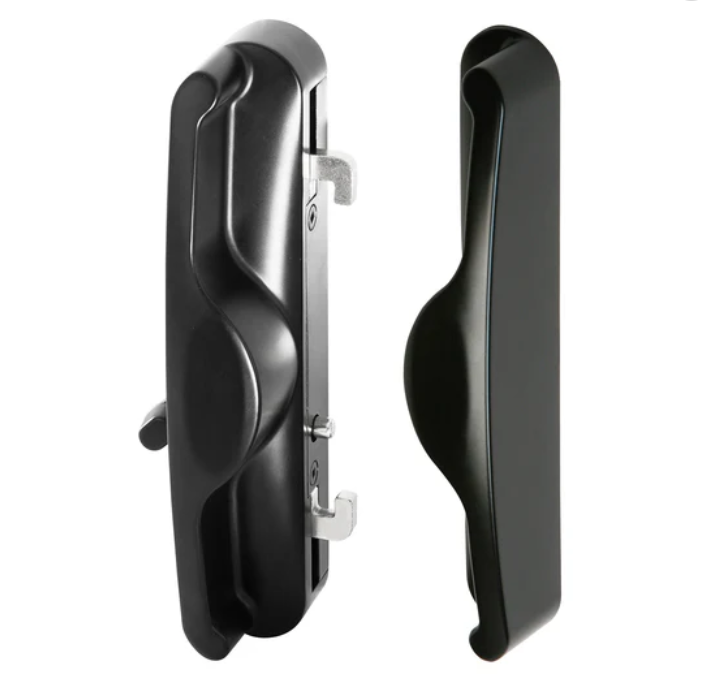

• Slimline: Non-Key Locking – Inside snib with blank outside pull

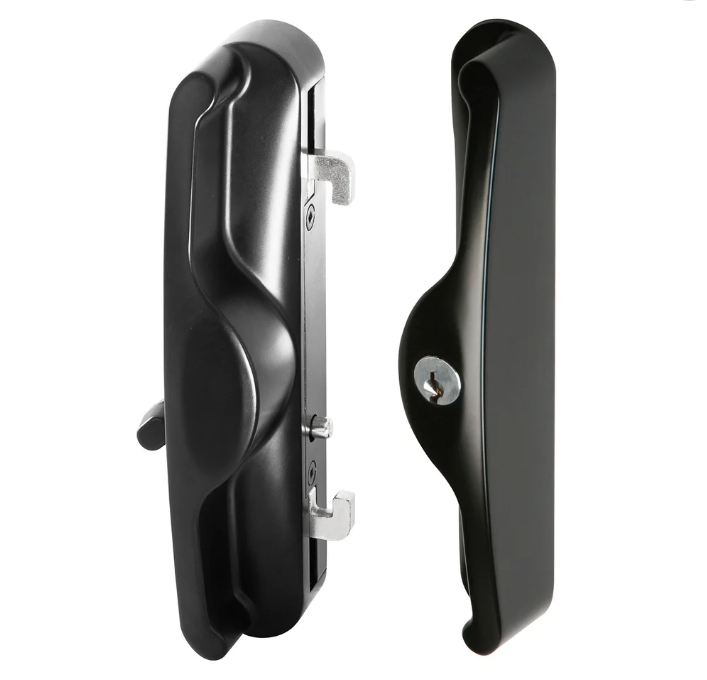

• Slimline: External Locking – Inside snib with outside key access

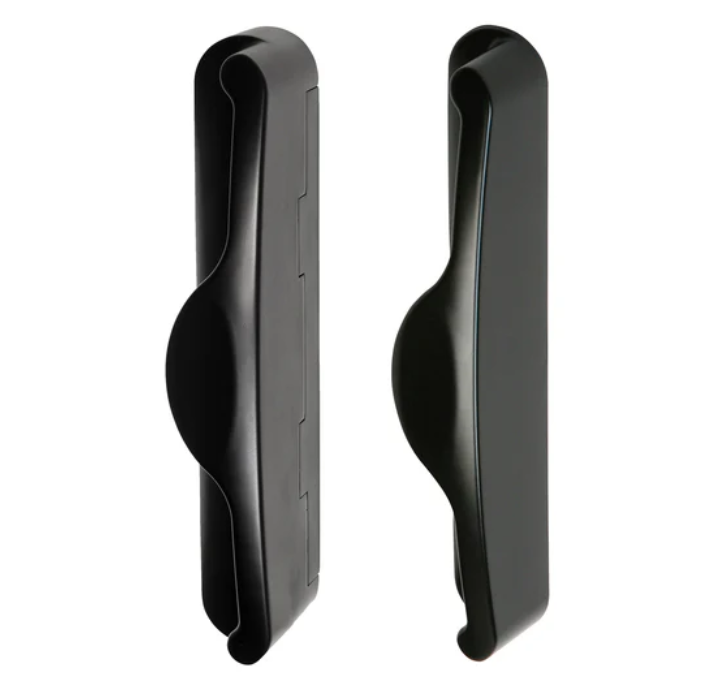

• Slimline: Dummy – Non-locking pull handle

Available Finishes

• Black

Key Features

• Suitable for most timber and aluminium sliding glass doors
• TwinSecure® twin locking jaws
• SlamStop® protection helps prevent jaw damage and accidental lockout
• Universal / non-handed design
• Simple three-hole installation
• Suitable for new or replacement applications
• Schlage C5 cylinder supplied on keyed models
• C4 keyway option available

Technical Information

• Door thickness: 30mm–50mm
• Handle length: 190mm
• Application: External sliding doors
• Handing: Universal
• IP Rating: No IP rating published

Machining / Drill-Out

• The Standard and Slimline styles require the correct Schlage Stella installation template.
• Confirm the selected style, function, door thickness, existing cut-out and strike position before machining or ordering.

Important Note

The Deadlocking with Daylatch function is available only with the Standard D-Handle.

Select an External Locking model where outside key access is required.

Warranty Information

Covered by a 10-year mechanical warranty, subject to correct installation, normal use and Allegion / Schlage warranty conditions.

Finish warranty is subject to Allegion’s current finish-warranty terms.
