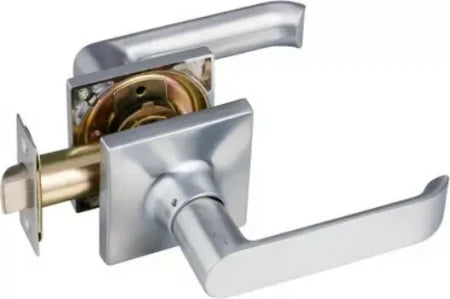

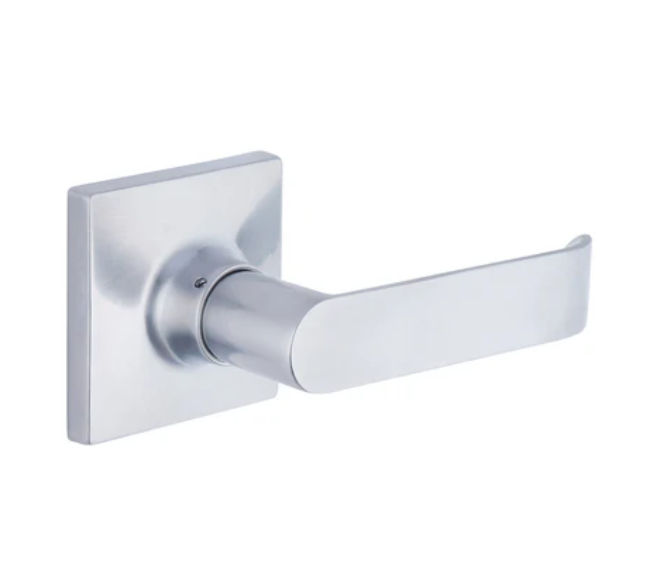

Schlage Regent Orlando Lever Set

Product Description

The Schlage Regent Orlando Lever Set features a modern straight lever with a distinctive square rose, suitable for residential timber or metal doors.

Available in Entrance, Privacy, Passage and Dummy functions to suit entrance doors, bedrooms, bathrooms, hallways and inactive doors.

Available Functions

• Entrance Set – ROENTS
  Keyed locking lever for residential entrance doors, with Schlage C5 keyway.

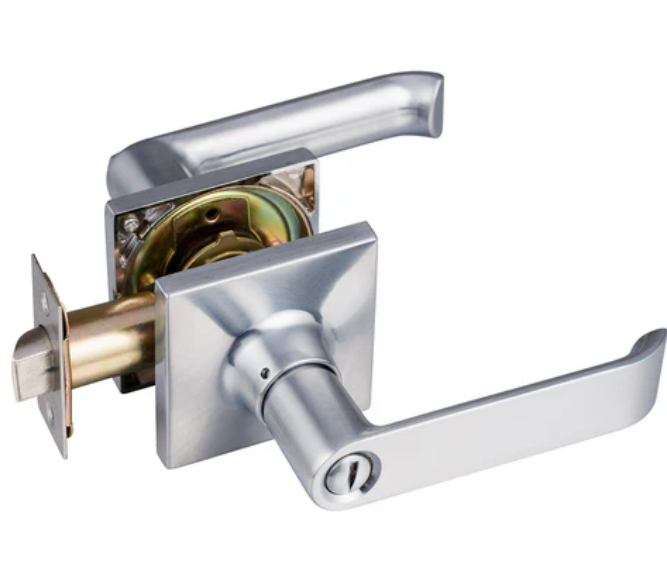

• Privacy Set – ROPRIVS
  Internal privacy locking with outside emergency release, suitable for bedrooms and bathrooms.
• Passage Set – ROPASSS
  Non-locking lever for hallways and general access doors.
• Dummy Set – RODUMMS
  Fixed lever trim for wardrobes, cupboards or inactive doors.

Finish

• Satin Chrome Plate

Key Features

• Modern Orlando lever with square rose
• 54mm door preparation
• 60mm / 70mm adjustable backset
• Suitable for 35mm–50mm door thickness
• Non-handed, field-reversible design
• Concealed fixing
• Triple Option® latch faceplate
• Designed to meet ANSI residential security standards

Technical Information

• Application: Residential
• Door type: Timber or metal
• Lever material: Zinc die-cast
• Latch: Stainless steel
• Handing: Non-handed
• Cylinder: Schlage C5 keyway on Entrance Set
• IP Rating: No IP rating published

Machining / Drill-Out

Entrance, Privacy and Passage sets suit a standard 54mm face bore with a 60mm or 70mm backset.

The Dummy Set is fixed trim only and does not include a working latch. Confirm the required function and existing door preparation before ordering.

Warranty Information

The current Schlage Regent Series brochure lists a 25-year mechanical warranty, subject to Allegion / Schlage warranty terms.

Finish warranty depends on the installation environment, exposure, cleaning and maintenance.
