Schlage F Series Latitude Door Lever – Dummy, Passage, Privacy & Entrance Lock

Product Description

Schlage F Series Latitude Door Lever offers a clean, modern lever design suitable for contemporary homes, renovations and interior door upgrades. With its straight-line profile and 63mm round rose, the Latitude lever provides a simple, stylish look that works well with modern, minimalist and farmhouse-style interiors.

The Schlage F Series is designed for easy retrofitting and suits most common door preparations. It features reversible levers, so no left or right handing is required, and the concealed fixing gives the hardware a tidy finished appearance. Available in multiple functions, this range is suitable for bedrooms, bathrooms, hallway doors, wardrobe doors and selected residential entry applications where appropriate.

Available Functions:

Dummy Lever:
A non-latching lever used for wardrobe doors, cupboard doors or inactive doors where a pull handle function is required.

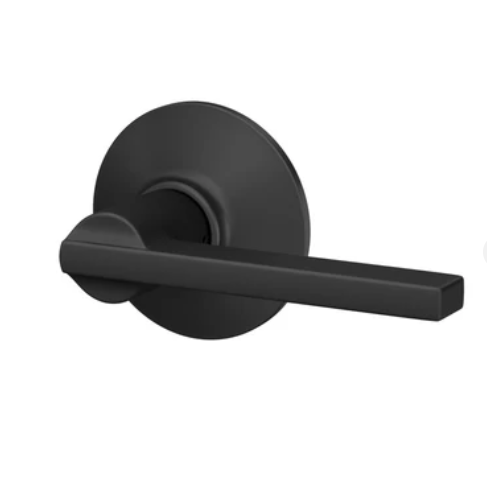

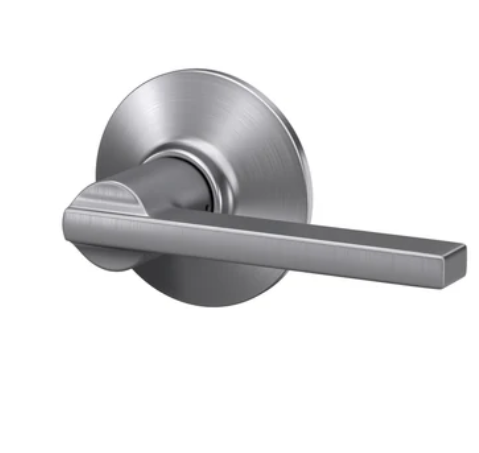

Passage Lever:
A non-locking lever suitable for hallway doors, living areas, internal access doors and general passage doors.

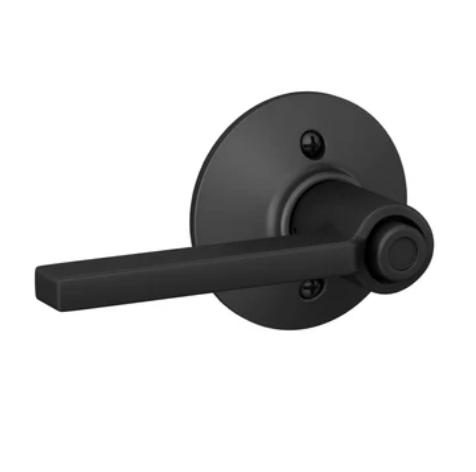

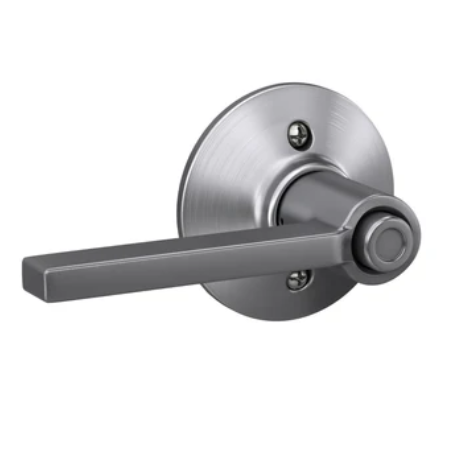

Privacy Lever:
A locking interior lever suitable for bedrooms, bathrooms and other private rooms. Designed for internal privacy rather than high-security locking.

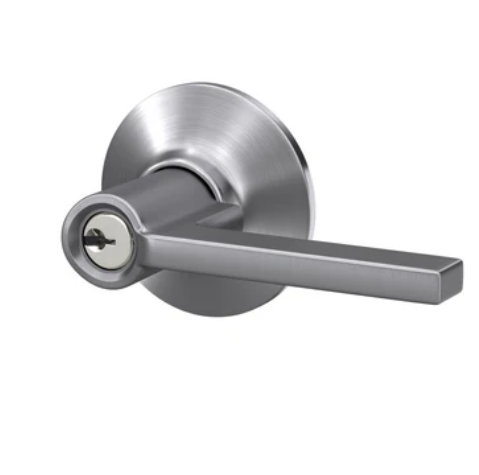

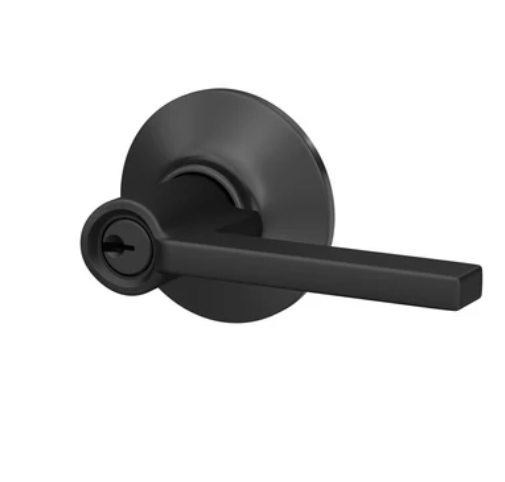

Entrance Lock:
A keyed locking lever suitable for selected residential entry or internal keyed applications. Please check suitability for your door type and security requirements before ordering.

Key Features:

• Modern Latitude lever design with round rose
• Suitable for most common residential door preparations
• Reversible handing – no left or right hand selection required
• Concealed fixing for a clean finished look
• Easy installation with standard tools
• ANSI Grade 2 product performance
• Available in selected finishes and functions

Technical Information:

• Series: Schlage F Series
• Style: Latitude
• Bore Hole: 54mm
• Edge Bore: 24mm
• Backset: Adjustable 60mm / 70mm
• Door Thickness: 36mm – 44mm
• Lever Length: 114mm
• Handing: Universal / reversible
• Application: Internal residential doors and selected keyed applications depending on function

Machining / Drill-Out Information:

This lever is designed for a standard 54mm face bore with a 24mm edge bore and an adjustable 60mm or 70mm backset. Please check your existing door preparation before ordering.

Warranty Information:

Schlage F Series products are supported by Allegion / Schlage warranty terms. The F Series range includes a lifetime mechanical warranty under normal residential use, subject to correct installation, operation and maintenance. Finish warranty may vary depending on the selected finish. Allegion states lifetime finish warranty for selected finishes such as polished brass and satin nickel, and 10-year warranty for selected finishes such as antique brass and satin chrome. Warranty does not cover incorrect installation, misuse, damage caused by unsuitable cleaning products, exposure to harsh or corrosive environments, normal wear and tear, or finish deterioration caused by poor maintenance. Please check the latest Allegion / Schlage warranty terms for the specific finish and function ordered before purchase.
