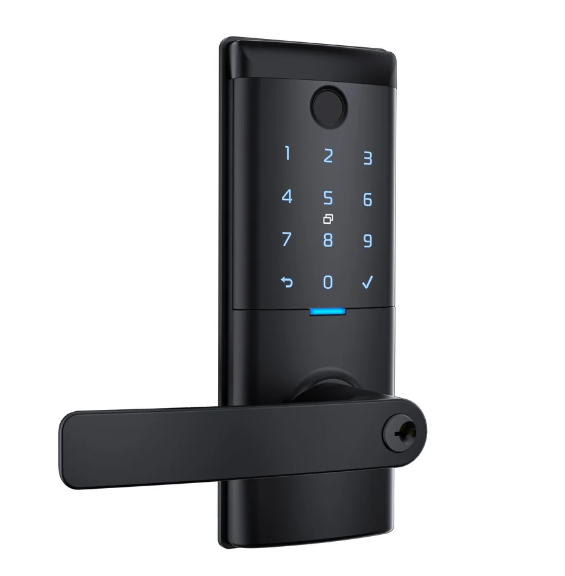

Schlage Ascent Smart Entrance Lever SREASC02

Product Description

The Schlage Ascent Smart Entrance Lever provides convenient keyless access through fingerprint, PIN code, key tag, Schlage Breeze app or back-up key.

Designed for exterior entrance doors, it fits standard 54mm door preparation and features an adjustable 60mm/70mm backset, making it suitable for many replacement and new installations.

Available Finishes

• Black

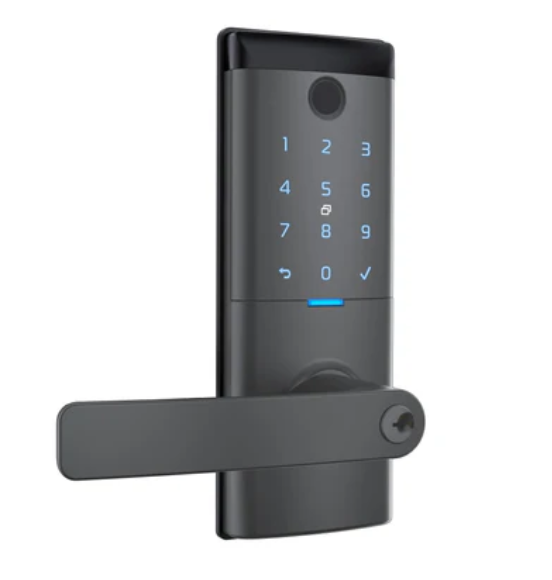

• Graphite

Key Features

• Stores up to 150 fingerprints, 150 PIN codes and 150 key tags
• Temporary and recurring access through the Schlage Breeze app
• Built-in alarm, auto-locking and passage modes
• Low-battery warning and USB-C emergency power
• Schlage C5 key cylinder
• Optional Schlage Wi-Fi Bridge for remote access
• Works with Amazon Alexa and Google Assistant
• Powered by 4 × AA alkaline batteries

Technical Information

• Weather rating: IP56
• Door thickness: 32mm–55mm
• Backset: 60mm/70mm adjustable
• Face bore: 54mm
• Edge bore: 25mm
• Handing: Field reversible
• Construction: Aluminium alloy

Weather Protection

The Schlage Ascent Smart Entrance Lever is weather resistant with an IP56 rating, providing protection against dust and strong water jets.

The IP56 rating applies to the Ascent Entrance Lever and Deadbolt models only. Installation must still follow Schlage’s instructions, and the internal battery assembly should be kept protected from unnecessary moisture.

Machining and Installation

Requires a 54mm face bore, 25mm edge bore and 60mm or 70mm backset.

Confirm the door thickness and existing preparation before ordering. Installation must follow the official Schlage Ascent template.

Warranty Information

• 2-year mechanical warranty
• 2-year electronic warranty

Warranty is subject to Allegion and Schlage’s current terms and correct installation.
