Lorient LAS8001 Automatic Mortice Drop Seal – Silver

Product Description

The Lorient LAS8001 Automatic Mortice Drop Seal is a premium concealed door bottom seal designed to help reduce draught, sound leakage, smoke movement, and energy loss through the gap under hinged doors.

Installed into a machined groove at the bottom of the door, the seal automatically drops when the door closes and retracts when the door opens. This provides a clean hidden finish while maintaining smooth door operation.

This product is suitable for residential, commercial, apartment, office, internal access, acoustic, smoke, and selected fire-rated door applications where a professional bottom sealing solution is required.

For the best full-door sealing result, pair this drop seal with suitable perimeter seals around the door frame.

Available Lengths

• 535mm Drop Seal (SKU: LAS8001/0535/S)：Can be cut back to minimum 435mm
• 635mm Drop Seal (SKU: LAS8001/0635/S)：Can be cut back to minimum 535mm
• 735mm Drop Seal (SKU: LAS8001/0735/S)：Can be cut back to minimum 635mm
• 820mm Drop Seal (SKU: LAS8001/0820/S)：Can be cut back to minimum 735mm
• 920mm Drop Seal (SKU: LAS8001/0920/S)：Can be cut back to minimum 820mm
• 1070mm Drop Seal (SKU: LAS8001/1070/S)：Can be cut back to minimum 920mm
• 1220mm Drop Seal (SKU: LAS8001/1220/S)：Can be cut back to minimum 1070mm
• 1400mm Drop Seal (SKU: LAS8001/1400/S)
  • Can be cut back to minimum 1220mm
  • This is a non-standard size. For fire-rated, smoke-rated, acoustic-rated, or compliance-based door assemblies, suitability and test evidence should be confirmed before use.

Key Features

• Fully concealed automatic drop seal for the bottom of hinged doors
• Helps seal the gap under the door for improved draught, acoustic, smoke, and energy-efficiency performance
• Automatically drops when the door closes and retracts when the door opens
• No power connection required
• Self-levelling design helps seal against slightly uneven floor surfaces
• Seal height can be adjusted independently of the fixing screws
• Internal fins help improve acoustic and smoke containment performance
• Silicone rubber gasket provides flexible long-term sealing
• Suitable for both left-handed and right-handed doors
• Suitable for single swing, single leaf, and double leaf hinged doors
• Clean concealed finish once installed

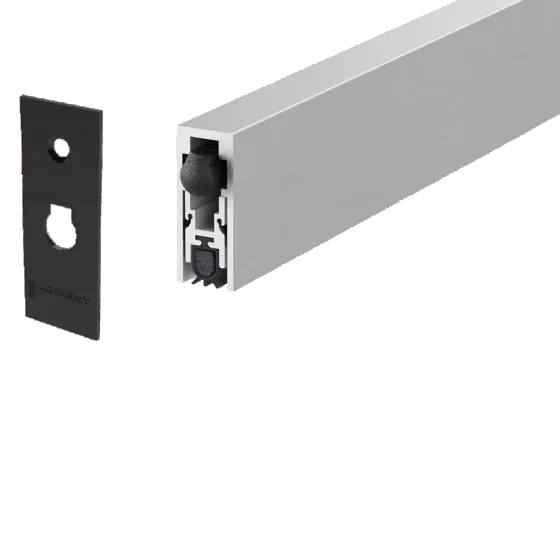

• Silver anodised aluminium finish with stainless steel end plates and grey silicone rubber gasket

Technical Information

• Brand: Lorient
• Series: LAS8001
• Product Type: Automatic mortice drop seal
• End Plate Type: Square end plate
• Finish: Silver anodised aluminium
• Application: Door bottom
• Door Type: Hinged doors
• Operation: Automatic mechanical drop action
• Maximum Sealable Gap: Up to 13mm
• Handing: Suitable for both left and right handed doors

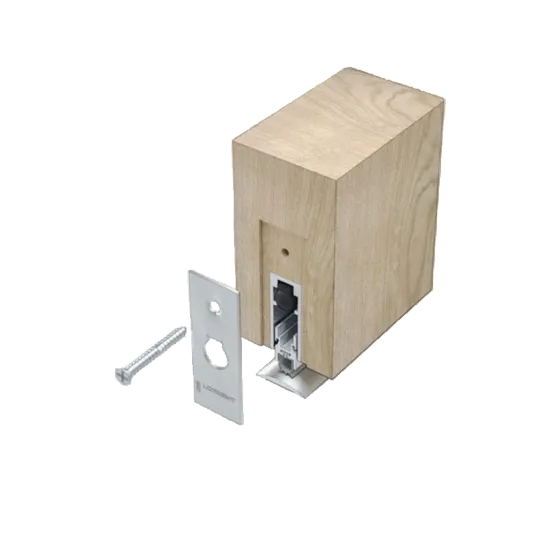

• Installation Type: Morticed into the bottom of the door
• Required Groove Size: 15mm wide x 35mm deep
• Seal Material: Aluminium carrier with silicone rubber gasket
• Gasket Colour: Grey
• End Plates: Stainless steel
• Pack Type: Trade pack

Machining / Installation Notes

• This product must be installed into a machined groove at the bottom of the door.
• Required groove size is 15mm wide x 35mm deep.
• The seal is fixed in place with screw-fixed stainless steel end plates.
• Lengths can be cut back within the manufacturer’s permitted cut-back limits.
• Do not cut shorter than the listed minimum cut-back size, as this may affect the normal operation of the internal automatic mechanism.
• Measure the actual door width, door clearance, floor level, and threshold condition before cutting or installing.
• The seal should be installed so it drops evenly onto the floor or threshold when the door is closed.
• For larger or uneven gaps, a suitable threshold plate may be required.
• Professional installation is recommended, especially for finished doors, solid core doors, acoustic doors, smoke-rated doors, or fire-rated door assemblies.

Performance Information

• Designed to support acoustic, smoke, draught, and energy-efficiency performance when installed as part of a suitable door assembly
• Fire tested on proprietary fire door assemblies
• Smoke tested on compliant door assemblies
• Acoustically tested with ratings up to 40Rw on appropriate rated assemblies
• Long-term mechanical durability tested to 100,000 cycles

Important Notes

• This product seals the bottom gap under the door only.
• It does not seal gaps around the head and jambs of the door frame.
• For a better full-door sealing result, use together with suitable perimeter seals around the frame.
• Actual acoustic, smoke, draught, and thermal performance depends on the full door assembly, door core, frame condition, floor level, threshold, and installation quality.
• Hollow core doors will still have limited acoustic performance compared with solid core doors.
• For fire-rated, smoke-rated, acoustic-rated, or compliance-based doors, always confirm that the selected size, door assembly, and installation method are suitable for the project specification.
• The 1400mm length is a non-standard size. Approval or test evidence should be confirmed for compliance-based applications before use.

Warranty Information

• Backed by a 24-month Lorient / ASSA ABLOY NZ warranty against material defects, subject to the manufacturer’s warranty terms and conditions.
• Warranty does not cover incorrect installation, misuse, normal wear and tear, cosmetic damage, unsuitable application, unauthorised modification, or failure caused by using the product outside the manufacturer’s technical specifications.
