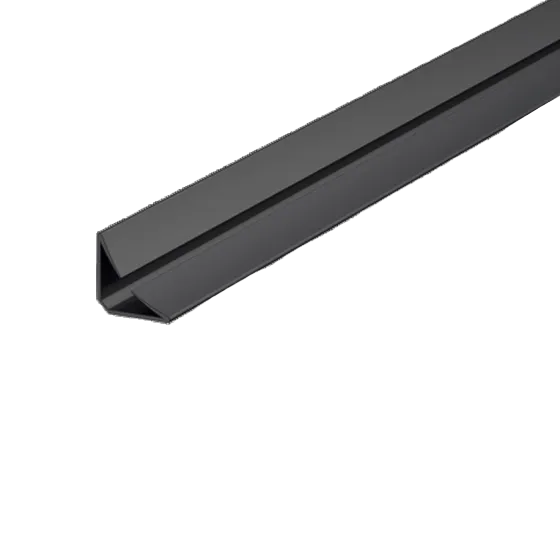

Lorient LAS1212 Batwing Acoustic & Smoke Door Frame Seal – Black

Product Description

The Lorient LAS1212 Batwing Acoustic Smoke Door Seal is a premium perimeter seal designed to help reduce sound leakage and restrict the spread of medium-temperature smoke around hinged door assemblies.

Its unique Batwing curved fin design creates a flexible seal around the door frame while keeping opening and closing resistance low. The seal is discreetly positioned in the frame rebate, making it a clean and practical upgrade for residential, commercial, office, apartment, and internal access door applications.

This seal is suitable for the head and jambs of single or double hinged doors. For best acoustic and draught sealing performance, it is recommended to use this product together with a suitable automatic drop seal at the bottom of the door.

Available Variants

Single Door Set – Standard (SKU: LAS1212/SDS/B)
Includes 1 x 1.0m length and 2 x 2.1m lengths.
Suitable for standard-height single hinged doors.

Single Door Set – Long (SKU: LAS1212/LSDS/B)
Includes 1 x 1.0m length and 2 x 2.75m lengths.
Suitable for taller single hinged doors.

Double Door Set – Standard (SKU: LAS1212/DDS/B)
Includes 3 x 2.1m lengths.
Suitable for standard-height double hinged doors.

Double Door Set – Long (SKU: LAS1212/LDDS/B)
Includes 1 x 2.1m length and 2 x 2.75m lengths.
Suitable for taller double hinged doors.

Key Features

• Designed to help contain sound and restrict the spread of medium-temperature smoke around hinged door assemblies
• Unique curved Batwing fins provide effective sealing while minimising door closing resistance
• Low-friction flexible fins spring back to their original shape for long-term performance
• Discreet installation inside the door frame rebate
• Simple peel-and-stick installation with aggressive self-adhesive backing
• Can be retrofitted to suitable existing door assemblies
• Suitable for the head and jambs of single and double hinged doors
• Black finish with black fins

Technical Information

• Product Series: Lorient LAS1212 Batwing
• Seal Type: Acoustic and smoke perimeter seal

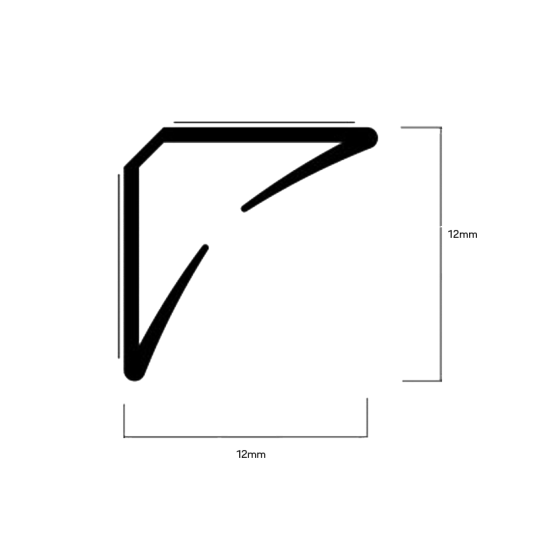

• Size: 12mm x 12mm
• Finish: Black
• Application: Door frame head and jambs
• Door Type: Single or double hinged doors
• Gap Size: 2mm to 3mm
• Fixing Method: Film-backed self-adhesive
• Material: Co-extruded rigid back PVC with flexible fins
• Smoke Performance: Designed to restrict medium-temperature smoke up to 200°C
• Acoustic Performance: Tested with ratings up to 39Rw on appropriate rated assemblies
• Durability: Long-term mechanical test completed up to 100,000 cycles without failure

Installation Notes

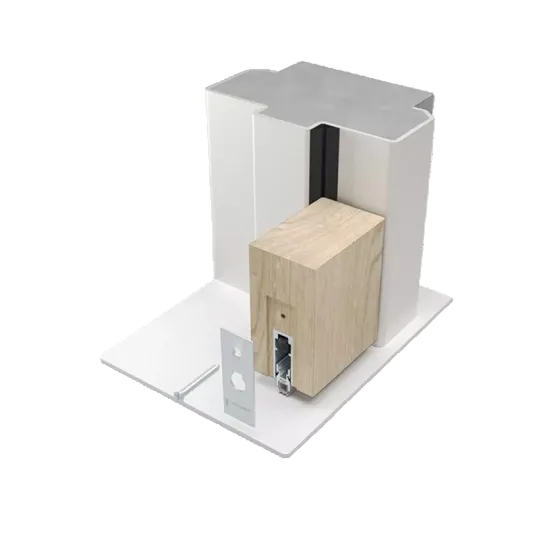

• Install into the door frame rebate, not directly on the exposed face of the door leaf.
• The frame surface must be clean, dry, smooth, and free from dust, oil, or loose paint before installation.
• Check door clearance before installation. This seal is designed for a 2mm to 3mm gap.
• Do not install where the door edge will scrape or tear the fins during operation.
• For newly painted frames, allow the paint to fully cure before applying the seal.
• Cut lengths to suit the actual door frame size.

Important Notes

• This product seals the top and side gaps of the door frame only.
• It does not seal the bottom gap under the door.
• For better acoustic, draught, and thermal performance, pair this product with an automatic drop seal such as Lorient LAS8001 or LAS8009.
• Performance depends on the door type, frame condition, installation quality, and the complete door assembly.
• A hollow core door will still have limited sound insulation compared with a solid core door.

Warranty Information

• Backed by a 24-month Lorient / ASSA ABLOY NZ warranty against material defects, subject to the manufacturer’s warranty terms and conditions.
• Warranty does not cover incorrect installation, misuse, normal wear and tear, cosmetic damage, or failure caused by unsuitable surfaces or door/frame conditions.
• For best performance, the seal must be installed on a clean, dry, sound surface and checked periodically as part of normal door maintenance.
