Brio Sprintline 30 Top Hung Surface Sliding Door Track Kit - 1500 / 2400mm

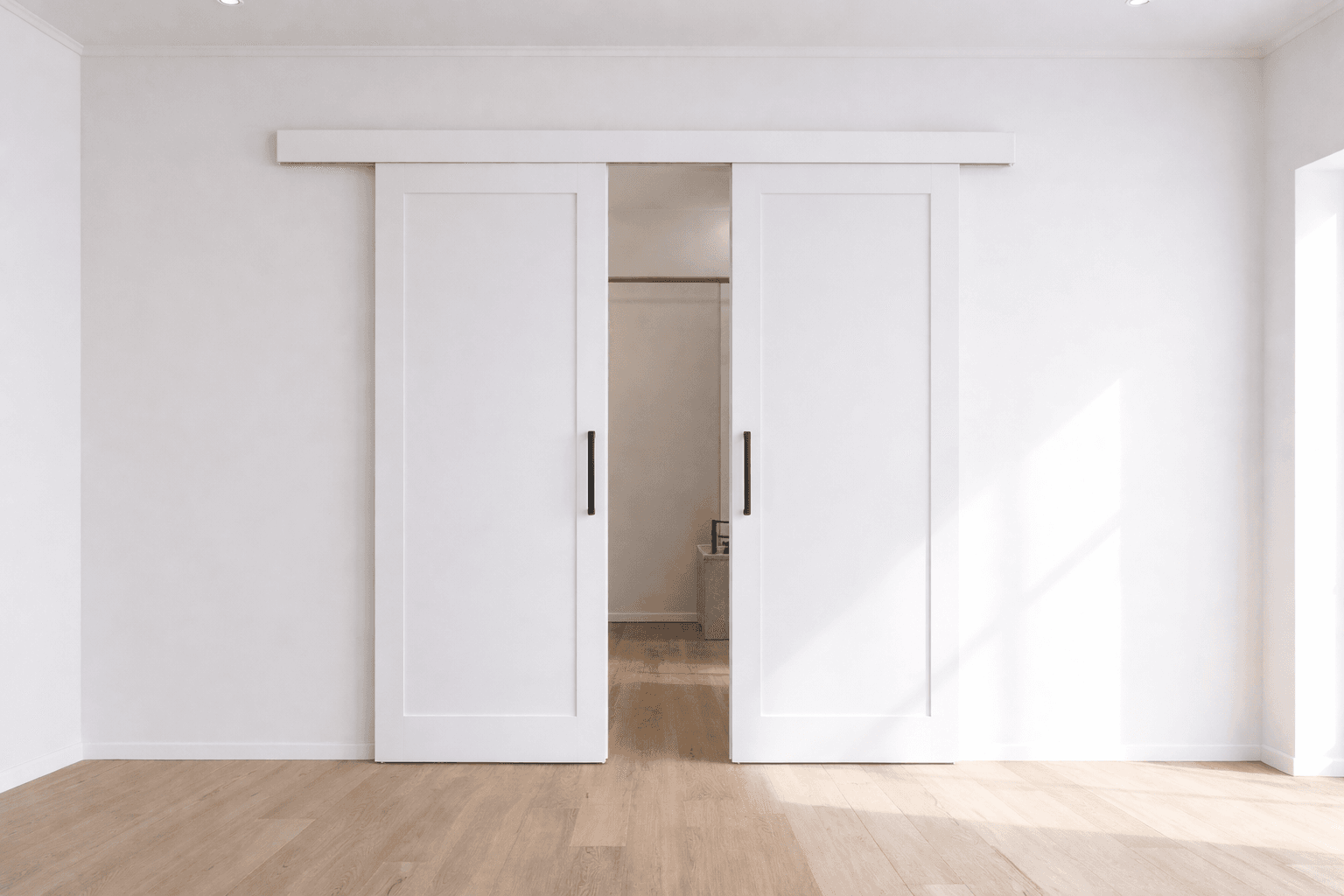

Brio Sprintline 30 is an economical top-hung sliding door track system designed for residential interior timber sliding panels. It is suitable for a single sliding panel or two bi-parting panels operating on one track, making it a practical option for wardrobe doors, cupboard doors, internal sliding doors, and light residential sliding applications.

The system uses a side-fixed aluminium track with nylon-tyred ball race hangers to provide smooth and quiet operation. In-situ height adjustment allows the door position to be adjusted easily after installation, helping achieve a neat and reliable sliding action.

Features:

• Top-hung sliding track system for residential interior doors
• Suitable for 1 single sliding panel or 2 bi-parting panels on one track
• Smooth and quiet operation with nylon-tyred ball race hangers
• Easy in-situ height adjustment
• Side-fixed aluminium track
• Optional white fascia/pelmet available to conceal the track and hangers


Panel Specifications:

• Panel type: Internal timber
• Maximum panel weight: 30kg
• Maximum panel width: 1500mm
• Maximum panel height: 2400mm
• Suitable panel thickness: 25–40mm

Warranty Information:

Brio Sliding & Folding Door Hardware comes with a 10-year mechanical warranty from Allegion New Zealand, covering defects in materials and workmanship from the date of purchase.

The warranty is subject to proper installation, correct use, regular maintenance, and compliance with Allegion’s instructions. It does not cover decorative finish deterioration unless specifically stated, fair wear and tear, incorrect installation, misuse, accidental damage, or unauthorised repair or modification.

Please refer to Allegion New Zealand’s official Brio Sliding & Folding Door Hardware Warranty document for full terms and conditions.
